Mavic repair / Troubleshooting gimbal errors

When a gimbal error warning message pops up in the DJI GO or GO 4 app, it can really get your pulse going. Tilted horizon, gimbal motor overload, and abnormal mavic gimbal vibrations are some errors you might experience. For some pilots, especially newbies, the first reaction is usually to fix the mavic gimbal by twisting it manually, DO NOT do this as it doesn’t work and can damage your gimbal.

So what’s the right thing to do? It’s very likely that you are just a few taps away from resolving your gimbal issue in the DJI GO apps. For instance, by performing an IMU and gimbal calibration in the DJI GO apps you can fix a tilted horizon. By inspecting your take-off site, you can check if the gimbal motor overload is caused by obstructions stopping the gimbal from rotating. If the gimbal vibrates abnormally, you definitely need to check if any anti-vibration parts such as the vibration absorbing board, dampers, and rubber balls are malfunctioning.

Furthermore, gimbal errors can be caused by environmental factors. For example, flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The good news is that you don’t need to worry as the gimbal will recover full functionality once it dries. If not call one of our expert drone repair engineers who can book and assist you with repairing your DJI service drone. We are specialists for mavic repair and phantom repair in  Sydney and Nationwide Mavic repairs

Right Now! Call 0455880407 Book your Repair

email sales@duvolab.com

Recover from Water

Pull the battery out of the DJI drone and set it aside somewhere safe and fireproof because lithium batteries can become unstable when damaged and often burst into flames. Also, the more time that your DJI drone has power applied to it, the more damage will be done.

This is an article to assist you with minimising the damage caused by contact with water.

You will need to send your DJI drone in for assessment and testing.

So, your DJI drone has crashed into a body of water; a lake, the ocean, a swimming pool perhaps. The type of water does matter. You probably weren’t given a choice, but landing in fresh water is way better than landing in salt water. Salt water is highly corrosive and electrically conductive, so the chances for every kind of harm are a lot higher if you land in the ocean than if you land in a lake.

Let’s talk about the major components and the potential risk:

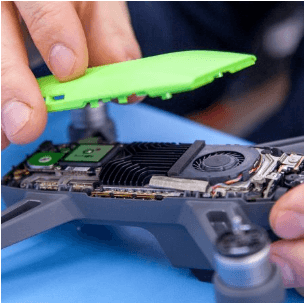

Main Board and Circuitry

Water is electrically conductive (salt water extremely so). So dipping your DJI drone into water is like creating a thousand little short circuits all over the circuit boards.. Sometimes you blow up some circuitry (the motor speed controllers are extremely vulnerable since they are high-power circuits).

Motors

Modern brushless motors, like those on DJI drones, have almost no moving parts. There’s just a single bearing which, if properly cleaned up, might be just fine.

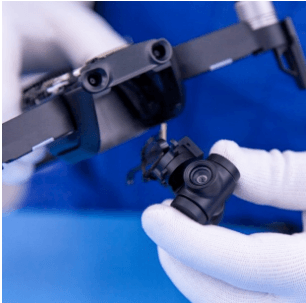

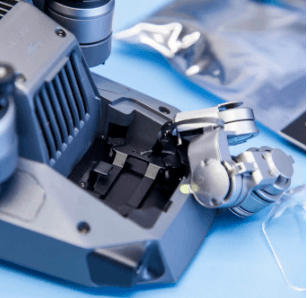

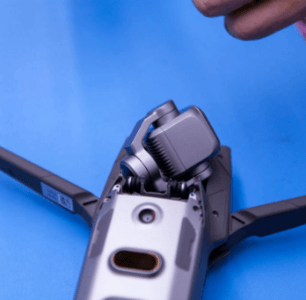

Gimbal Assembly

The gimbal assembly has a couple of key rotating parts, including variable resistors which provide feedback on how far the motors have rotated the arms. The number one enemy here is corrosion. If you got it out of the water quickly enough (and got the salt off of it by rinsing in alcohol) you might be ok.

Camera

Depending on how deep your DJI drone sinks, and how long it stays, water can force its way into the camera and cause condensation on the lens and the sensor. This could mean that you’ll need a new camera.

Battery

The safest thing to do with the battery if it gets more than a quick dunk is to send it to your local electronics disposal centre. A battery failure often includes a fire and sometimes an explosion. Having this happen in flight is especially bad.

Next Steps - Same Day - Don't Wait to Dry

Once the battery is removed, the next step is to stop the corrosive action of the water and any salts in it. We recommend rinsing the DJI drone in isopropyl alcohol (rubbing alcohol) that you buy at the drug store. Isopropyl alcohol is rather inert chemically and it absorbs water, so everywhere it gets in your DJI drone you will be replacing something bad (water) with something less bad (alcohol).

Next, you need to get the alcohol and remaining water out. This involves disassembling the case and removing the flight controller from its enclosure (if that’s how your DJI drone is built). Then everything goes in a warm dry place, with circulating air.

While you have it disassembled, you also need to check for mechanical damage. Hitting water hard can be almost as bad as hitting the ground. Also, many water landings are really secondary crashes, having hit a tree or something else first.

Spin the motors by hand to make sure that they rotate freely. Do the same with the gimbal components.

When everything is nice and dry, and no longer smells like alcohol, you can put it back together.
